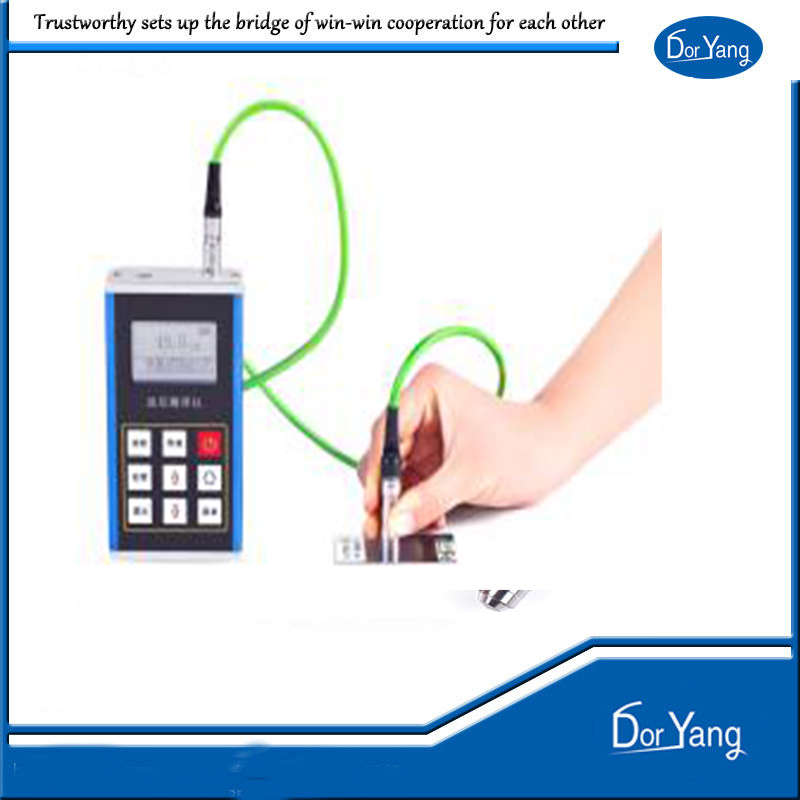

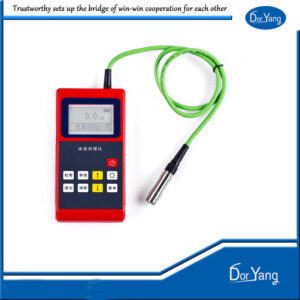

The Coating Thickness Gauge is widely used in various testing fields, including electroplating, corrosion protection, aerospace, aviation, chemical industry, automotive, shipbuilding, light industry, and commercial inspection. It is suitable for both laboratory and on-site engineering applications. By equipping different probes, it can be adapted to various conditions. This instrument is essential for the non-destructive testing industry.
Main Functions:
- Uses magnetic measurement methods to non-destructively detect the thickness of non-magnetic coatings on magnetic metal substrates (e.g., aluminum, chromium, copper, zinc, tin, rubber, and paint on steel alloys and hard magnetic steel).
- Fully Chinese menu interface.
- Two working modes.
- Data deletion function.
- Automatic alarm for out-of-limit measurements.
- Low battery indicator.
- Manual and automatic shutdown options.
- Two measurement methods.
- Can store 500 measurement values.
- Limit setting available.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | Dor Yang 230 |
| Probe Type | F1 |
| Measurement Principle | Magnetic Induction |
| Measurement Range | 0~1250μm |
| Minimum Resolution | 0.1μm |
| Accuracy | One-point calibration: ±(3%H+1) Two-point calibration: ±[(1~3%)H+1] |
| Minimum Curvature Radius (mm) | Convex: 1.5, Concave: 9 |
| Minimum Measurement Area Diameter (mm) | Φ7 |
| Minimum Critical Thickness (mm) | 0.5 |
| Operating Temperature | 0~40℃ |
| Operating Humidity | 20%~90% |
| Power Supply | Two AA alkaline batteries (1.5V) |
| Casing | Metal shell |
| Device Dimensions (mm) | 150×55.5×23 (main unit) |
| Weight | F1/320g |
Standard Configuration:
- Main unit
- Standard test pieces
- Substrate
- AA alkaline batteries
- Probe F1
