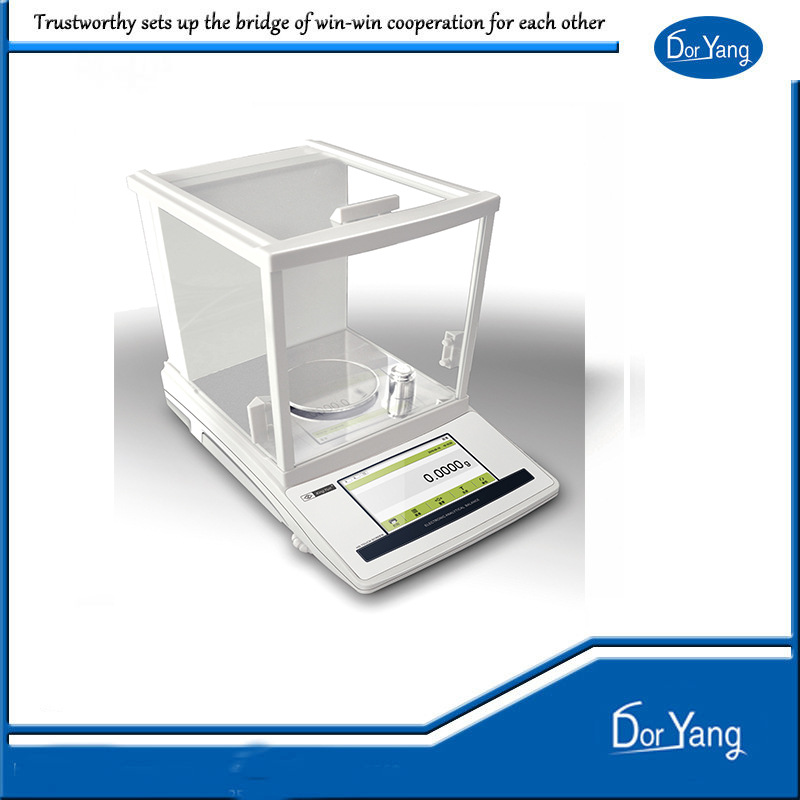

Product Features:
- 5-inch color touchscreen with a clear and intuitive display, providing a user-friendly interface for easier operation.
- Fully automatic time-triggered internal calibration with optional auto-calibration scheduling and one-touch calibration support.
- New-generation electromagnetic force balance sensor for fast and stable weighing.
- Precision-cast aluminum housing enhances anti-static and anti-interference capabilities.
- Three-door glass windproof shield with a spacious design for clear visibility and convenient operation.
- Newly added density measurement and weighing percentage functions.
Product Configuration:
- Fully automatic internal calibration
- One-touch auto-calibration
- 5-inch color touchscreen
- Level indicator
- Sensitivity and speed adjustment
- Full-range tare function
- Overload and fault alarm
- Counting, density measurement, and weighing percentage functions
- Under-hook weighing
- RS232 interface
Models:
- JA203T
- JA2103T
- JA303T
- JA403T
- JA503T
- JA603T
Specifications:
| Parameter | Value |
|---|---|
| Weighing Range | 200g / 210g / 300g / 400g / 500g / 600g |
| Calibration Weight | 100g / 200g |
| Calibration Method | Fully automatic time-triggered calibration, one-touch auto-calibration |
| Readability | 0.001g |
| Repeatability Standard Deviation | ±0.003g |
| Linearity Error | ±0.003g |
| Stabilization Time | ≤3 seconds |
| Operating Temperature | 5-35℃ |
| Unit Conversion | g, oz, ct… |
| Weighing Pan Size | Φ80mm |
| Windshield Dimensions | 240 × 190 × 265mm |
| Overall Dimensions | 365 × 205 × 350mm |
| Packaging Size | Inner Box: 415 × 285 × 430mm, Outer Box: 475 × 315 × 485mm |
| Optional Accessories | Printer |
| Gross Weight | 11kg |
