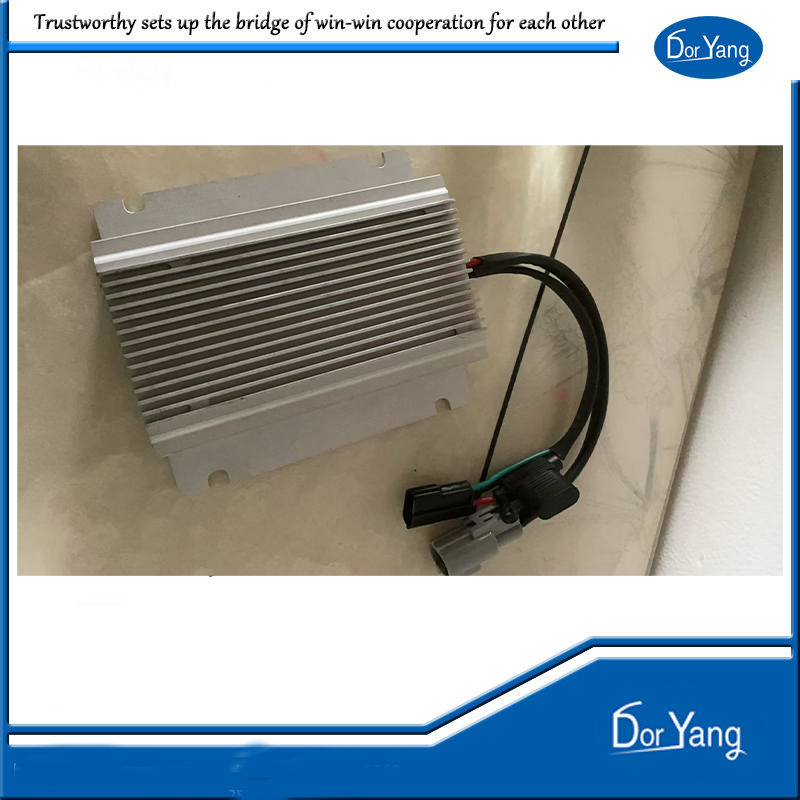

Looking for a dependable DC converter that delivers high efficiency, robust protection, and reliable performance? The JL2401-300W is engineered to meet your power needs with precision. Whether for industrial, automotive, or battery-pack applications, this device guarantees efficiency and durability.
Benefits of JL2401-300W DC-DC Converter
1. Versatile Input Compatibility
Operates within a wide DC voltage range of 30-98V.
Seamlessly supports 48V, 60V, and 72V battery packs for diverse use cases.
2. Consistent Output Performance
Constant Voltage and Current Limiting ensure steady and safe power delivery.
Output precision with 13.8 ± 0.3V constant voltage and ±2% constant current accuracy.
Maximum output current of 30A, supporting high-power devices effectively.
3. Advanced Safety Features
Overvoltage and Undervoltage Protection prevent damage from power fluctuations.
Overcurrent and Short-Circuit Protection ensure the system’s safety under extreme conditions.
Thermal Protection: Automatically reduces power at 90℃ and shuts down at 100℃ to prevent overheating.
4. Robust Design for Durability
Rated IP66, offering complete protection against dust and water ingress.
Withstand voltage and insulation tested for secure operation in demanding environments.
Operates flawlessly in extreme temperatures from -30℃ to +60℃.
Technical Specifications of DC-DC Converter
| Category | Parameter |
|---|---|
| Input Voltage Range | DC 30-98V |
| Efficiency | ≥85% @ 25℃ |
| Output Voltage | Constant 13.8 ± 0.3V |
| Output Current | Max 30A (±2% accuracy) |
| Output Power | 300W @ 25℃ |
| Protection Grade | IP66 |
| Thermal Protection | Auto recovery after cooling (90℃ limit, 100℃ shutoff) |
| Ripple Voltage | <200mV |
| Operating Temp. | -30℃ to +60℃ |
Specification Model JL2401-300W Parameter Details
Input
• Reverse Polarity Protection: None
• Overvoltage Protection: 98 ± 2V
• Undervoltage Protection: 30 ± 2V
• Compatible Battery Packs: 48V / 60V / 72V
Output
• Output Mode: Constant Voltage and Current Limiting
• Constant Voltage Output: 13.8 ± 0.3V
• Ripple Voltage (Vp-p): <200mV
• Overcurrent Protection: Maximum 30A constant current output; output voltage decreases when current exceeds 30A.
• Short-Circuit Protection: Short-circuit current less than 40A
Withstand Voltage and Insulation
• Input to Ground: 500VDC ≤ 5mA
• Input to Output: 500VDC ≤ 5mA
• Output to Ground: 500VDC ≤ 5mA
• Insulation Resistance: ≥20MΩ @ 500VDC
Thermal Protection
• Overtemperature Protection: Limits output power at an internal temperature of 90℃; stops operation at 100℃. Automatically recovers after cooling.
Why JL2401-300W is a Better Product
High Efficiency: 85% efficiency minimizes energy loss.
Maximum Protection: Overvoltage, undervoltage, overcurrent, and thermal safeguards.
Durable and Waterproof: IP66 rating ensures reliability in tough environments.
Precision Engineering: Accurate, stable output with minimal ripple voltage.
Applications of DC-DC Step Down Buck Voltage Converter
Industrial equipment power regulation
Charging systems for 48V, 60V, and 72V battery packs
Automotive DC power needs
Outdoor and harsh environment applicationsMore Products: WiFi Circuit Breaker – MCB (YCB9ZF Series)
Contact for Step Down Adjustable DC-Dc Buck Voltage Converter
Upgrade your system with the dependable JL2401-300W DC Converter.
